Ｕ-Turn Kiln

Feature

1. 1.
   Horizontal rotary kiln with high filling capacity

   1. 1)

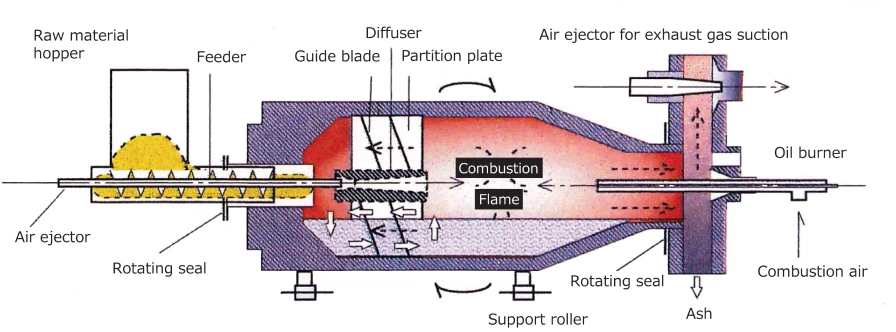

      Complete mixing of raw materials is made possible by the partition plate and guide plates equipped inside the kiln.
   2. 2)
      Small and compact Kiln
   3. 3)
      Supports both internal and external heating
2. 2.
   High Performance

   1. 1)

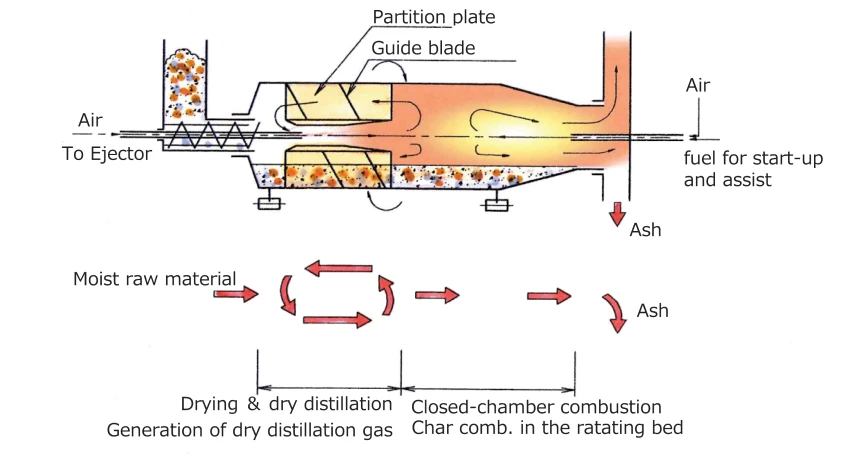

      Designed to process wet raw materials with high viscosity and moisture content.
   2. 2)
      By preventing the calcination zone from shifting, stable lime calcination with consistent quality is achieved.
3. 3.
   Designed with a simple structure for easy operation and maintenance

Typical Applications

• Drying, carbonization, and incineration (volume reduction) of waste
• Drying, carbonization, and activation of thinned timber, felled wood, wood waste, sawdust, etc.
• Production and reactivation of activated carbon
• Calcination of shells and similar materials
• Biomass gasification

Supply Record
